Multi-Installation 48V 100Ah LiFePO4 Battery for Home & Business Energy Storage (LS48100HM)
11-Year Comprehensive Warranty from Italy
Shipping Information: 15-30 days after payment confirmation. (Ships from Factory → Italy Hub → EU Customer).
Revolutionize your energy storage system with the LS48100H 48V 100Ah LiFePO4 battery – powerful, exceptionally flexible, and adaptable to any installation requirement. Take control of your energy, optimize solar self-consumption, ensure reliable backup power, or build robust off-grid systems for your home or business.
(Typical Delivery Time: 15-30 days across the EU - See our Shipping Policy for full details)
Unprecedented Installation Versatility

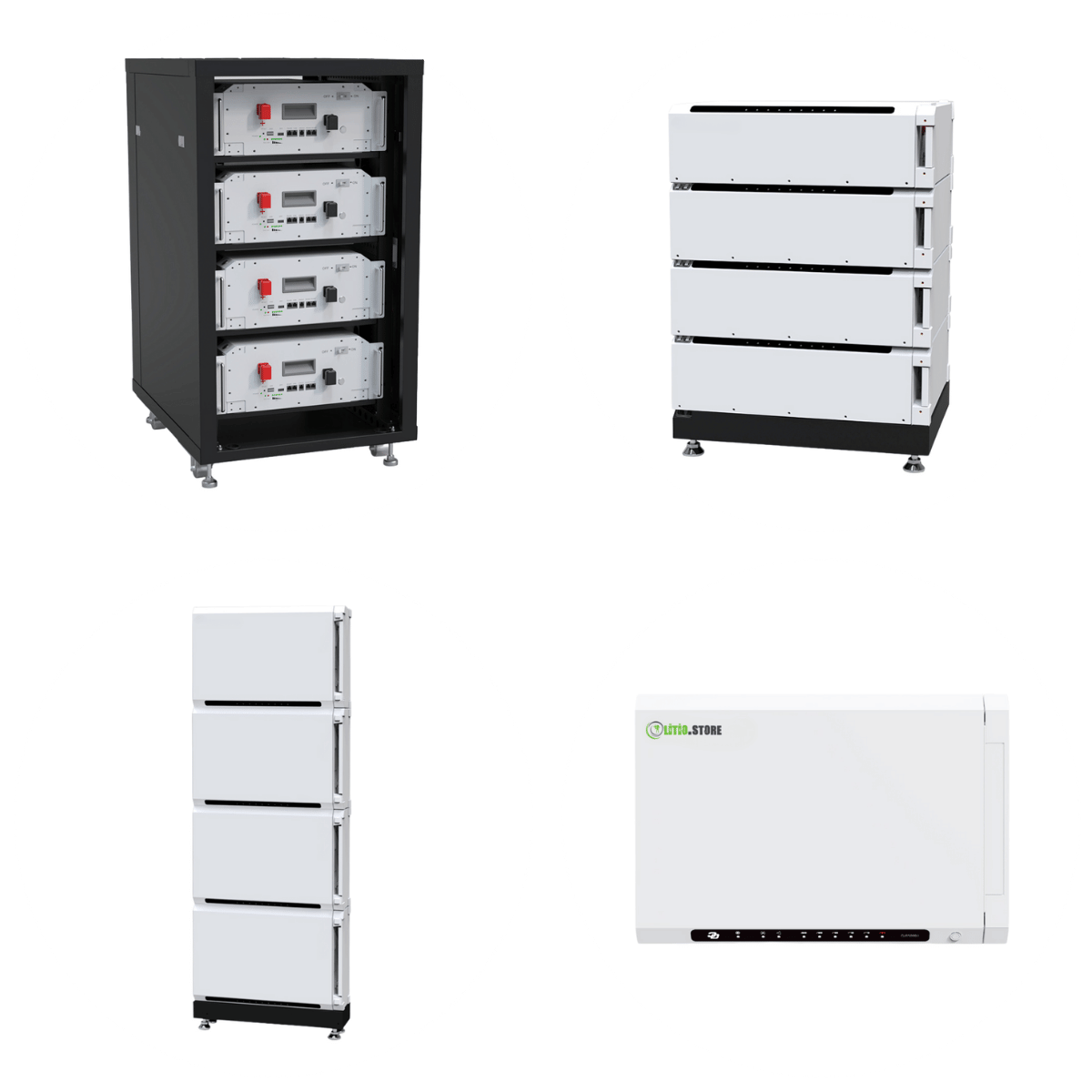

The LS48100H battery offers unparalleled flexibility with four distinct installation methods to suit any environment (Wall-mount brackets and/or stacking floor base):
-

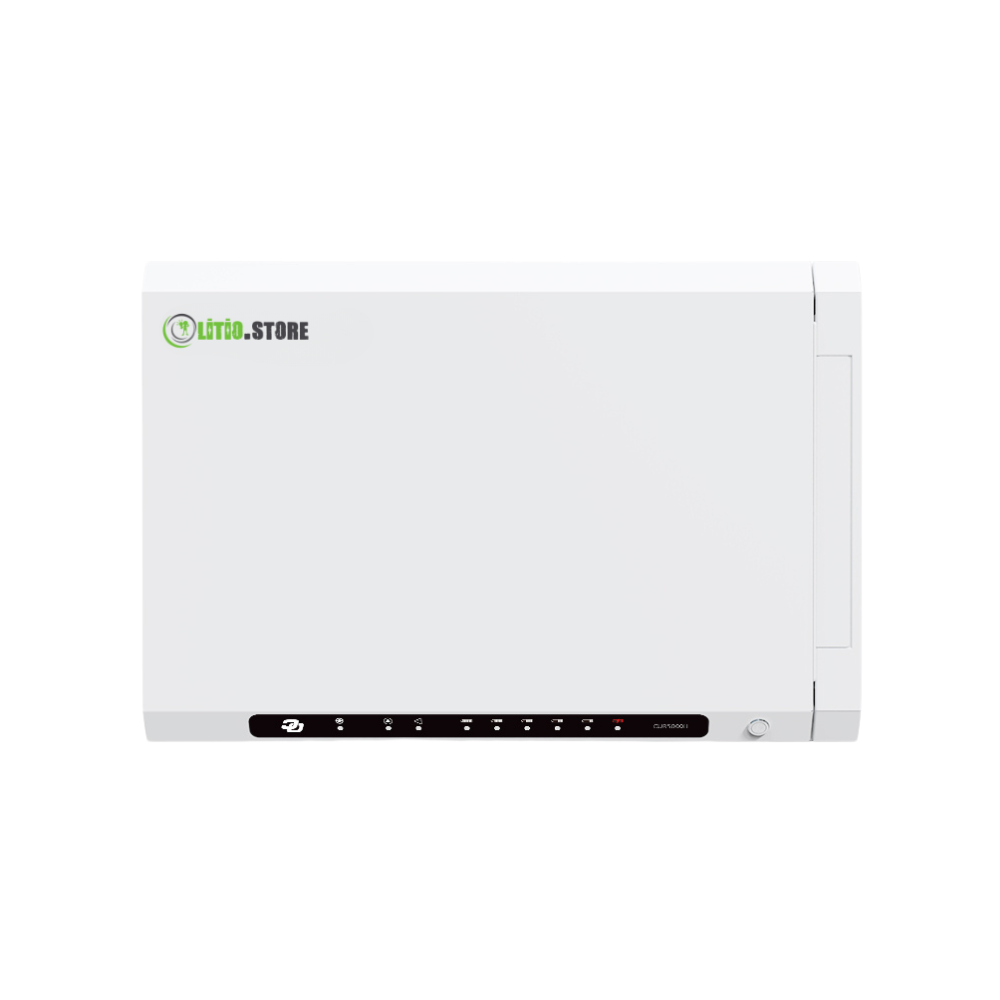

Wall Mounting: Ideal for saving floor space and achieving a discreet, clean installation.
-

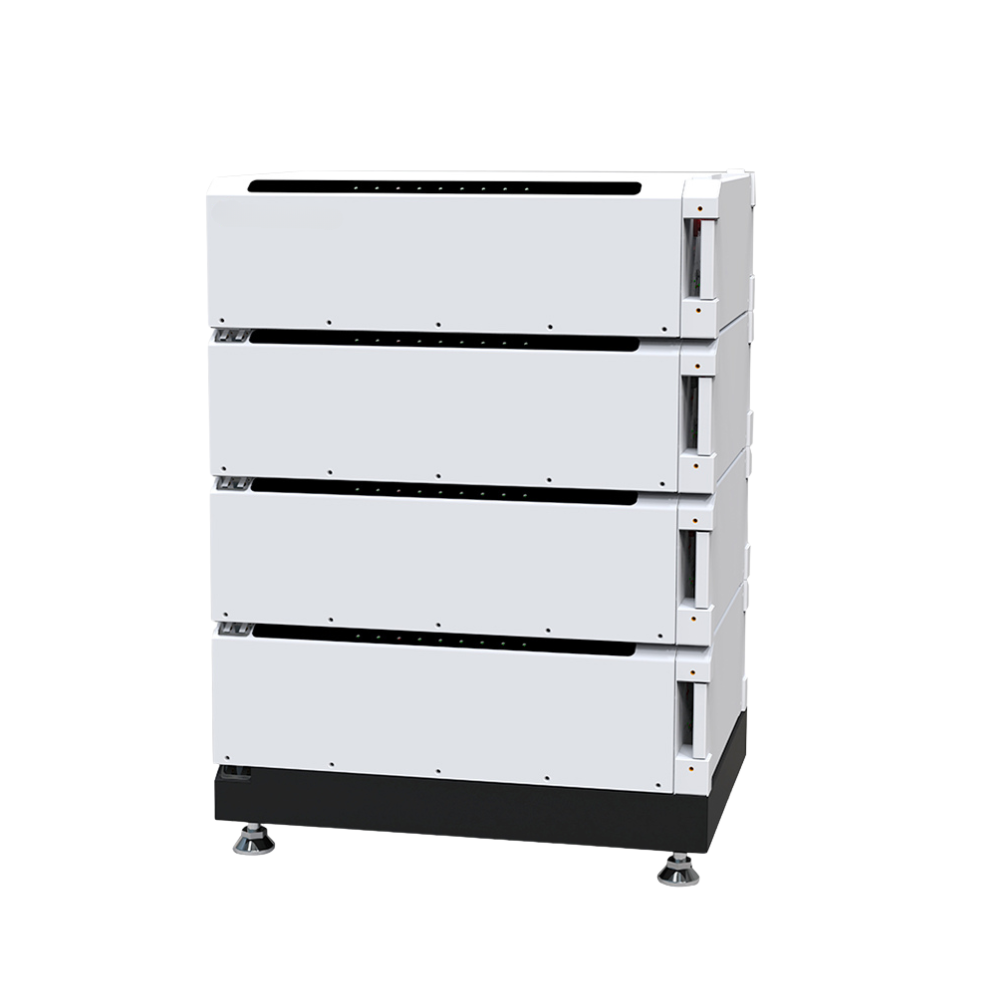

Horizontal Stacking: Optimize horizontal space for building large capacity banks using the included base.
-

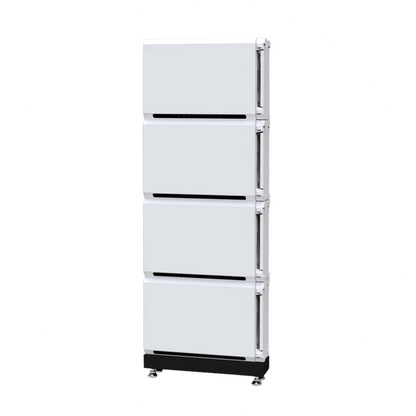

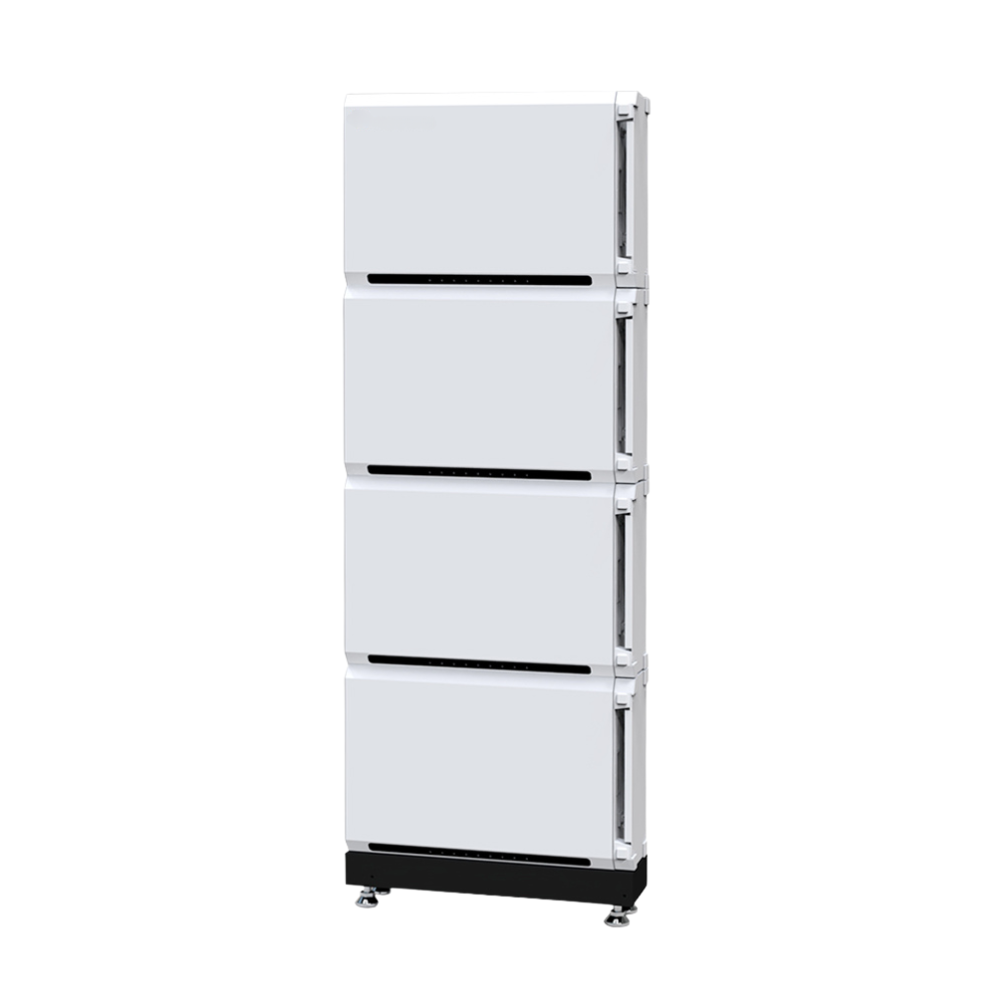

Vertical Stacking: Maximize energy density in compact areas by stacking units vertically on the included base.
- ☰

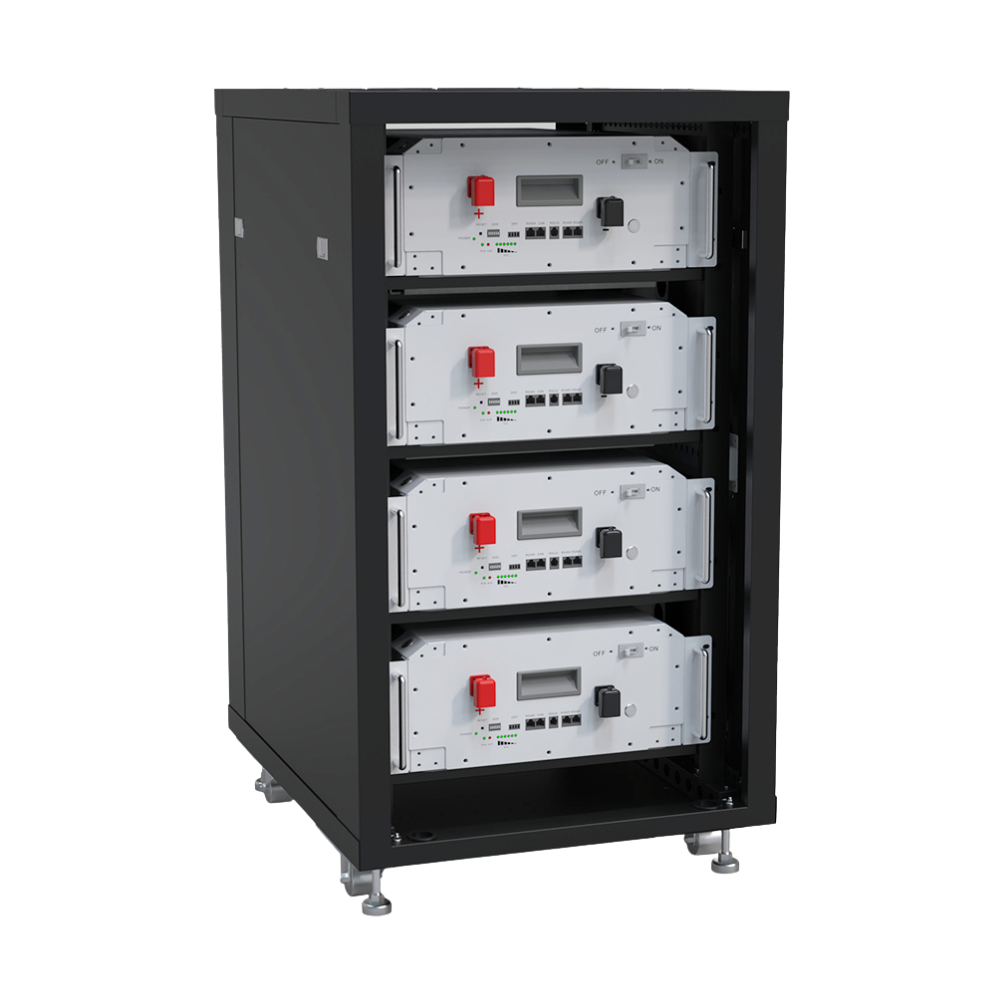

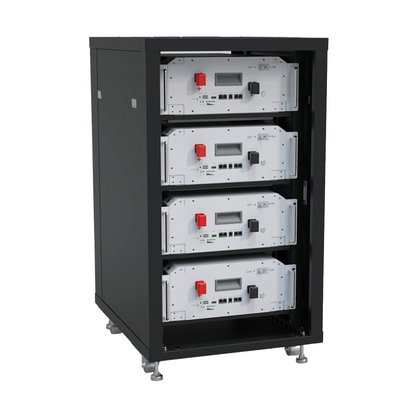

Rack Mounting: Suitable for standard server racks in professional or data center installations (confirm compatibility).
Why Choose the LS48100H Multi-Installation Battery?
-
Exceptional Durability: With ≥6000 life cycles, expect over 15 years of reliable energy storage under typical usage. A true long-term investment.
-
Unmatched Flexibility: Four installation modes adapt to virtually any space or system design requirement.
-
High Capacity & Scalability: Store 5.12kWh per unit. Effortlessly parallel up to 30 units for a massive 150kWh system capacity.
-
Advanced LiFePO4 Safety: Utilizes the safest, most stable lithium chemistry for ultimate peace of mind.
-
Optimal Performance: Supports high charge/discharge currents up to 100A continuous (350A peak) for superior efficiency and power delivery.
-
Climate Versatility: Operates effectively across a wide temperature range (Charge: 0~55℃, Discharge: -20~65℃).
-
Smart Communication Ready: CAN/RS485 interfaces allow for precise monitoring and advanced control with compatible inverters and systems.
-
Broad Inverter Compatibility: Designed to integrate smoothly with most major inverter brands (refer to manual for verified list).
Technical Documentation
Download detailed information for system planning, installation, and compatibility checks:
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Model | LS48100H |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 5.12 kWh (5120 Wh) |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life (@ 80% DoD, 25°C) | ≥ 6000 cycles |
| Discharge Cut-off Voltage | 40V |
| Charge Cut-off Voltage | 58.4V |
| Recommended Charge Current | 20A ~ 50A |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 350A (<35 seconds) |
| Operating Temperature (Charge) | 0°C to +55°C |
| Operating Temperature (Discharge) | -20°C to +65°C |
| Storage Temperature | 0°C to +45°C |
| Self-discharge Rate | < 3% / month |
| Dimensions (L x W x H) | 592 x 400 x 176 mm (±2mm) |
| Weight | Approx. 45 kg (99 lbs) |
| Communication Interface | CAN / RS485 |
| Parallel Connection | Max. 30 units (150kWh total) |
| Maximum Mounting Height | ≤ 2 meters |
The Italian Advantage: 11-Year Warranty & Expert Support
Invest in your energy future with complete confidence. This LS48100H battery is backed by our comprehensive 11-year manufacturer's warranty, managed efficiently from our headquarters in Italy. We build reliable energy solutions designed to last.
As an Italian company specializing solely in advanced lithium battery solutions since 2015, we provide unparalleled expertise. Get fast, knowledgeable pre-sales advice and reliable after-sales support from our team near Perugia.
Need Help Designing Your Energy Storage System?
Our Italy-based LiFePO4 experts are ready to assist with technical questions, inverter compatibility verification, and system design recommendations.
