LS4810CW 48V 10A 58.4V Lithium Battery Charger Waterproof IP67 LiFePo4 batteries
LS4810CW 48V 10A 58.4V Lithium Battery Charger Waterproof IP67 LiFePo4 batteries
Couldn't load pickup availability

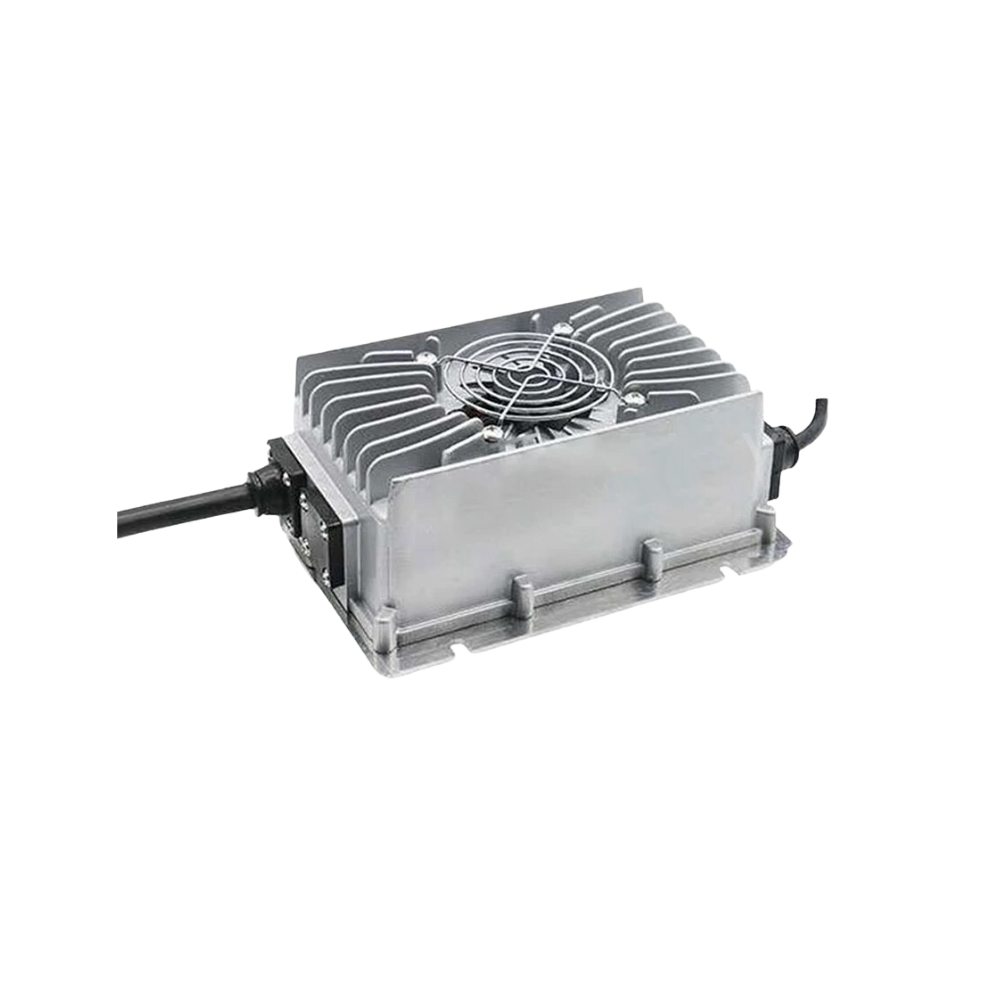

Waterproof IP67 48V 10A LiFePO4 Battery Charger (LS4810CW)
Shipping Information: Approx. 25-45 days after payment confirmation. (Ships from Factory → Italy Hub → EU Customer).
Reliably charge your 48V LiFePO4 battery system with the LITIO STORE LS4810CW charger. This durable, fully Waterproof IP67 unit provides a steady 10A charging current (580W), ideal for standard charging needs and maintaining battery health. Engineered for safety and compatibility with 48V LiFePO4 batteries.
Charger Key Features:
-
Reliable Charging (10A Output): Provides a steady 10 Amp current (580W Rated Power) for safe and effective charging of your 48V LiFePO4 batteries.
-
Fully Waterproof (IP67): Completely dust-tight and protected against temporary immersion in water. Ideal for marine, golf cart, and outdoor applications.
-
Standard LiFePO4 Charging (58.4V Output): Charges 16S LiFePO4 batteries to the standard 58.4V maximum voltage.
-
Multi-Protection Safety Features: Includes protection against Over-Voltage, Over-Current, Short-Circuit, Reverse Polarity, Over Temperature.
-
CE Certified & Reliable: Built with quality components for dependable performance. Accepts wide input voltage (220VAC ± 15%).
-
Robust Construction: Built with a durable metal casing to withstand demanding environments.
Compatibility
This charger is specifically designed for 48V (Nominal 51.2V) Lithium Iron Phosphate (LiFePO4) battery systems using a 16S cell configuration. Always verify compatibility with your specific battery's required charging voltage (58.4V max for this charger) and BMS settings before use. Contact us if you need assistance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LS4810CW |
| Input Voltage | 220VAC ± 15% (50/60Hz) |
| Output Voltage (Max) | 58.4 VDC |
| Output Current (Max) | 10 A |
| Rated Power Output | 580 W |
| Target Battery | 48V (51.2V) LiFePO4 (16S) |
| Efficiency | ≥92% |
| Protections | Short Circuit, Over Voltage, Over Current, Reverse Polarity, Over Temperature |
| Ingress Protection | IP67 |
| Cooling | Fan Cooled |
| Operating Temperature | -10°C to +45°C |
| Housing Material | Metal |
| Dimensions (L x W x H) | 187 x 123 x 68 mm |
| Weight | Approx. 1.8 kg (4 lbs) |
| Input Connector | EU Plug (Schuko) |
| Output Connector | Anderson Connector |
| Certifications | CE, RoHS |
Reliable Performance & Expert Italian Support
This LITIO STORE charger is built for reliable, long-term use and is covered by a 5-Year Manufacturer's Warranty against defects, managed directly from Italy.
As an Italian company specializing solely in advanced lithium battery systems since 2015, we provide unparalleled expertise. Get fast, knowledgeable pre-sales advice and reliable after-sales support from our team near Perugia city.
Questions About This Charger?
We can help you confirm compatibility with your battery or answer any technical questions.
