LS4825TW 48V 25A 56.8V 1400W Type 2 Lithium Battery Charger Waterproof IP67 LiFePo4 batteries
LS4825TW 48V 25A 56.8V 1400W Type 2 Lithium Battery Charger Waterproof IP67 LiFePo4 batteries
Couldn't load pickup availability

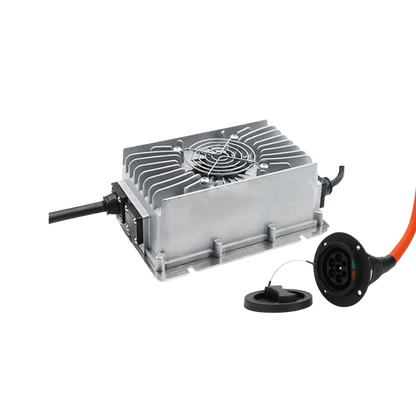

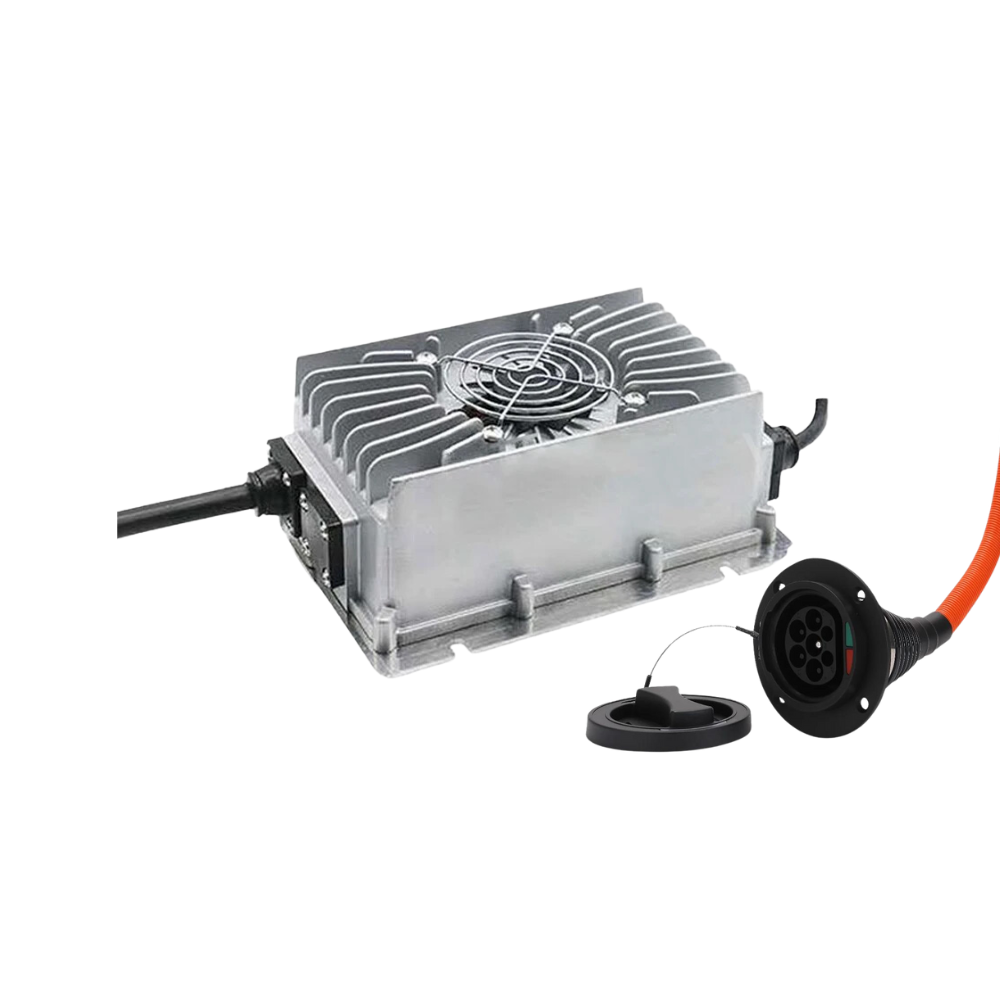

Waterproof IP67 48V 25A LiFePO4 Charger with Type 2 Input (LS4825TW)
Shipping Information: Approx. 25-45 days after payment confirmation. (Ships from Factory -> Italy Hub -> EU Customer).
Transform your charging experience! The LS4825TW 48V 25A by Litio Store allows you to reliably charge your 48V LiFePO4 batteries using standard Type 2 EV charging stations. This powerful (1400W), **IP67 waterproof** charger is perfect for golf carts, electric boats, RVs, and other mobile 48V systems, offering unparalleled charging flexibility. Features an optimized 56.8V output to maximize battery lifespan.
LS4825TW Key Features:
-

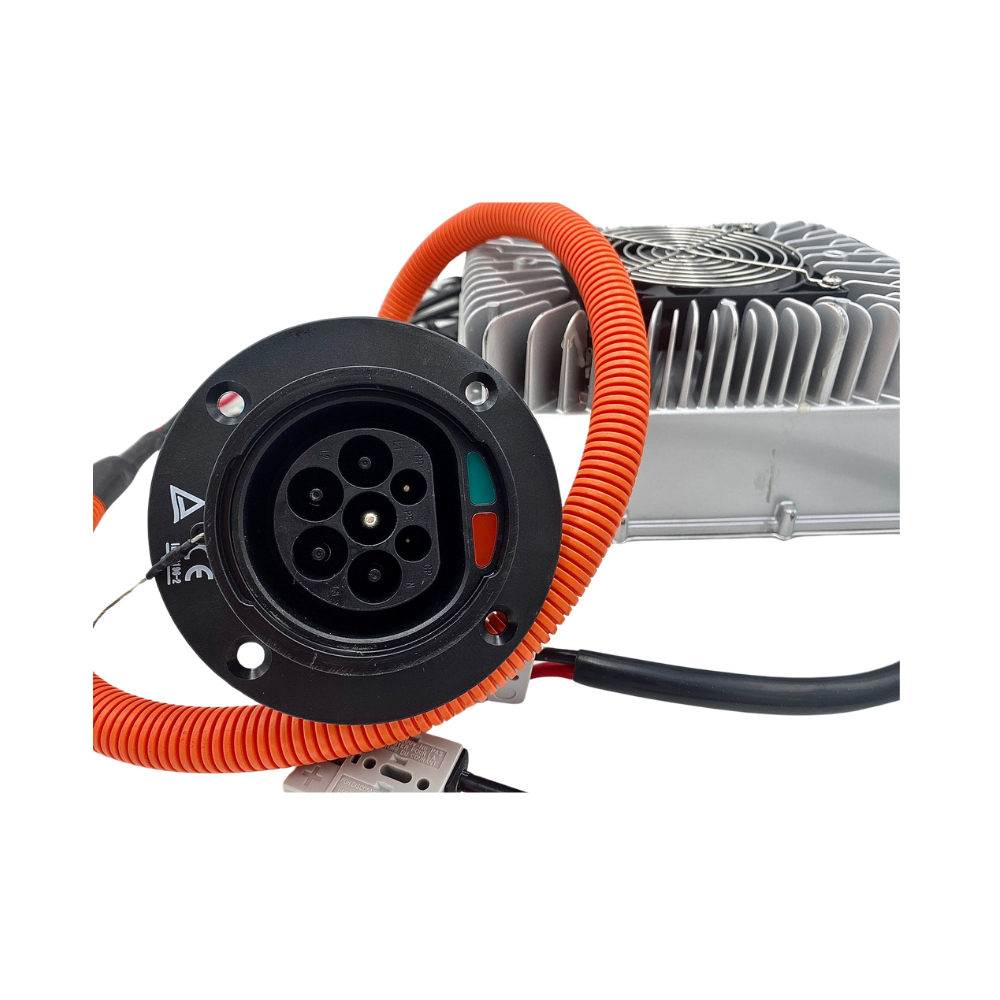

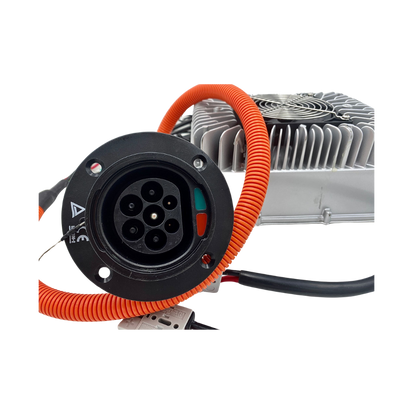

Charge Anywhere (Type 2 Input): Unprecedented versatility! Connect directly to standard Type 2 (IEC 62196) public or private EV charging stations to charge your 48V system.
-
High Power Charging (25A / 1400W): Delivers a strong 25 Amp current for significantly faster charging times compared to lower power chargers.
-
Fully Waterproof & Dustproof (IP67): Designed for reliability in harsh conditions. Perfect for marine, outdoor, and mobile applications.
-
Optimized LiFePO4 Longevity (56.8V Output): Charges to the ideal voltage for maximizing LiFePO4 battery cycle life, potentially lasting longer than standard 58.4V chargers.
-
Certified Safe & Reliable: CE, EN, and ROHS certified. Features comprehensive safety protections for worry-free operation.
-
Wide Operating Temperature: Functions reliably in demanding conditions from -30°C to +60°C.
-
Efficient Cooling: Utilizes forced air cooling to maintain optimal performance during charging.

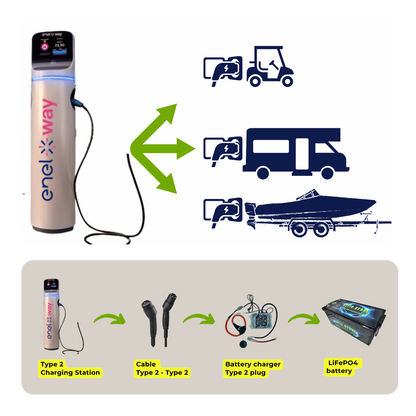

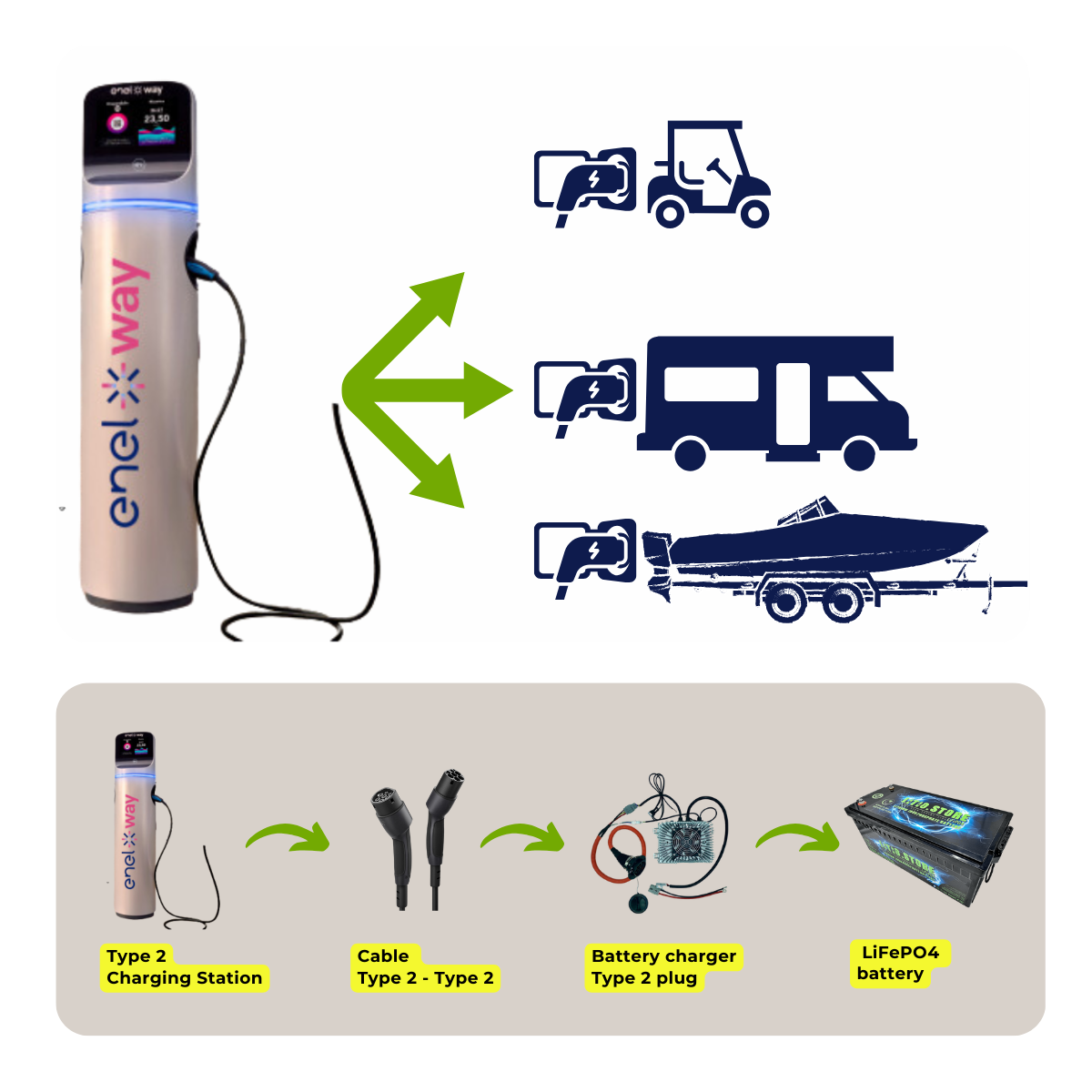

Revolutionise Your EV Charging Experience
The LS4825TW 56.8V 25A Battery Charger offers unparalleled flexibility by allowing you to charge your electric golf cart, boat, RV, or other 48V LiFePO4 systems directly from any standard Type 2 EV charging station (IEC 62196). Harness the growing EV infrastructure for your mobile power needs!
Compatibility
This charger is designed for 48V (Nominal 51.2V) Lithium Iron Phosphate (LiFePO4) battery systems (16S configuration). The Type 2 input negotiates power via the standard CC-CP signal protocol. Please ensure your battery BMS is compatible with a 56.8V charge voltage (prolong battery life) and 25A charge current.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LS4825TW |
| Input Connector | Type 2 (IEC 62196) |
| Input Voltage | 220V AC (Nominal, via EVSE negotiation) |
| Output Voltage (Max) | 56.8 VDC |
| Output Current (Max) | 25 A |
| Output Power | 1400 W |
| Compatible Battery | 48V (51.2V) LiFePO4 (16S LFP) |
| Efficiency | >95% |
| Operating Temperature | -30°C to +60°C |
| Ingress Protection | IP67 (On-board Seal Charger) |
| Cooling System | Forced Air Cooling |
| Communication | CC-CP Signal (Type 2 Standard) |
| Dimensions (L x W x H) | 282 x 146 x 82 mm |
| Weight | Approx. 3.2 kg (7 lbs) |
| Output Connector | Anderson |
| Safety Certifications | CE, EN, RoHS |
Reliable Performance & 2-Year Warranty
The ITALCHARGER is built for performance and backed by a strong 2-Year Manufacturer's Warranty against defects, managed directly from our headquarters in Italy. Enjoy complete confidence in your purchase.
As an Italian company specializing solely in advanced lithium battery systems since 2015, we provide unparalleled expertise. Get fast, knowledgeable pre-sales advice and reliable after-sales support from our team near Perugia city.
Questions About Type 2 Charging?
We can help you understand compatibility with your vehicle, battery system, or specific EV charging stations.
