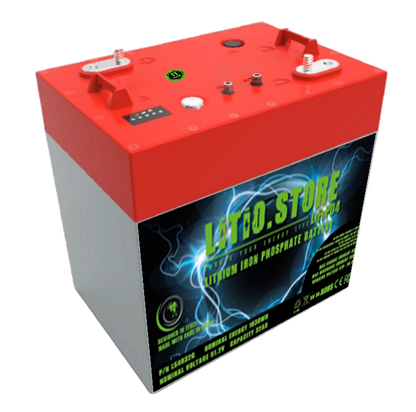

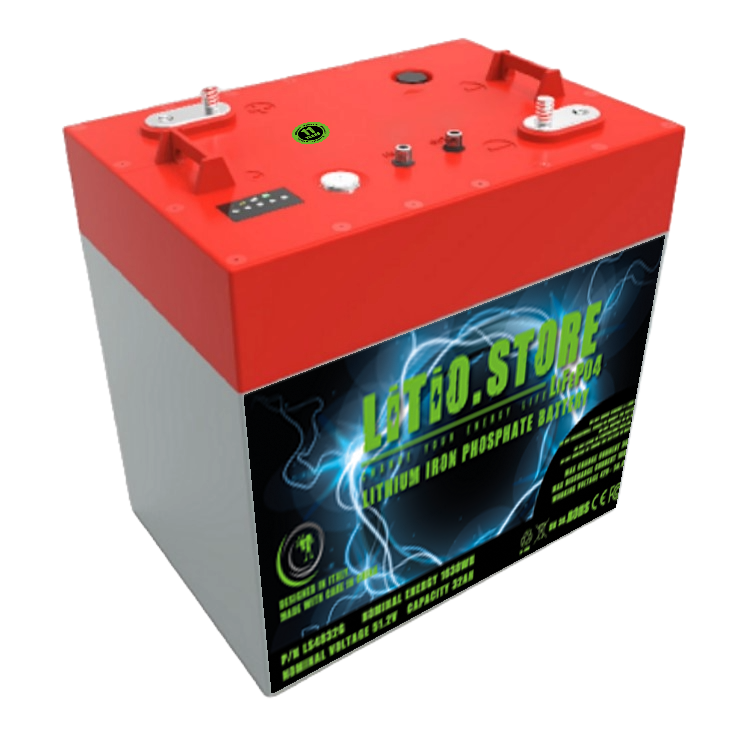

LS4832P67 48V 32Ah Golf Car Lithium Battery LiFePO4 box GC2 100A BMS IP67
LS4832P67 48V 32Ah Golf Car Lithium Battery LiFePO4 box GC2 100A BMS IP67
Couldn't load pickup availability
Upgrade Your Golf Cart: 48V 32Ah LiFePO4 Battery (GC2 Size) - Drop-in Power!
11-year Comprehensive Warranty from Italy
Limited stock: Fewer than 10 batteries available.
Shipping Information: 7-15 days after payment confirmation. (Ships from Italy Hub → EU Customer).
The Ultimate Golf Cart Battery - Key Features:
-
Regen Braking Ready: Specifically designed for golf carts, including those with regenerative braking – the BMS won't trip during energy recovery!
-
Perfect GC2 Fit: Standard BCI Group GC2 dimensions (260x180x276mm) ensure hassle-free drop-in replacement. -
Impressive Range: Just two batteries deliver 35-50 km (22-31 miles), easily covering 18+ holes.
-
Waterproof IP67 Rated: Fully protected against dust ingress and temporary immersion in water (up to 1 meter for 30 mins). Maximum protection against the elements.
-
Dual M8 Terminals: Makes connecting batteries in parallel easier and more secure.
-
Highly Expandable Power: Connect up to 10 batteries in parallel for a massive 320Ah capacity.
-
CANbus Communication: Allows for integration with compatible display units or control systems.
-
LED SoC Display: Integrated LED indicator provides a quick visual check of the battery's state of charge (optional ext. Monitor).
-
High Charge/Discharge Rates: Supports 30A charging and 100A continuous discharge per battery (additive in parallel).
-

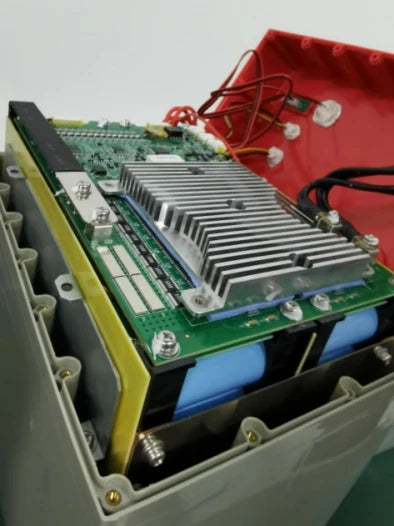

Solid-State BMS Switches: Faster, more reliable switching compared to mechanical relays. Designed specifically for high currents from golf cart motors, including regenerative braking surges.
-
Advanced Heat Dissipation BMS: UNIQUE FEATURE! Actively dissipates heat, preventing overheating, extending component life, and ensuring sustained performance.
-
Safety Valve & Flame Retardant Case: Includes a pressure relief valve and utilizes a UL94-V0 level flame retardant casing for enhanced safety.
Simply the best LiFePO4 battery upgrade for your golf cart and demanding 48V motors.
Leave heavy, maintenance-intensive lead-acid batteries behind! This 48V 32Ah Lithium Iron Phosphate (LiFePO4) battery is specifically engineered as a direct drop-in replacement for standard GC2 size lead-acid batteries (like 6x 8V setups) in your golf cart. Instantly slash weight, boost performance, and eliminate battery maintenance forever.
Drive Lighter & More Efficiently: With each battery weighing only 11 kg (24 lbs), you'll save approximately 140 kg (over 300 lbs) compared to your old lead-acid set! Experience noticeable gains in acceleration, improved hill-climbing, and reduced turf compaction.
Complete Your Upgrade with a Charger
Maximize the life and performance of your new LiFePO4 batteries with one of our compatible, waterproof chargers. Choose to add a charger to your order using the options on this page.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name / Model | LS4832P67 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 32 Ah |
| Nominal Energy | 1638 Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cell Type / Configuration | Cyl. 8Ah / 16S4P |
| Operating Voltage Range | 42V - 58.4V |
| Cycle Life (80% DoD) | > 4000 cycles |
| Max Continuous Discharge Current | 100 A |
| Peak Discharge Current | 300 A (3 seconds) 580A (256 usec) |
| Max Charge Current | 30 A |
| Parallel Connection | Up to 10 units (Max 320Ah) |
| Communication | CANbus |
| Display | LED State of Charge Indicator |
| Operating Temperature Range | -20°C to +55°C (-4°F to 131°F) |

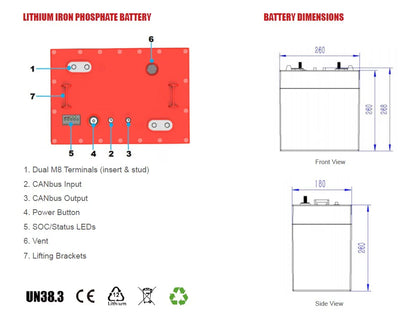

| Dimensions (L x W x H) | 260 x 180 x 276 mm (Matches BCI Group GC2) |
| Weight | Approx. 11 kg (24 lbs) |
| Terminals | Dual M8 Female Threaded |
| Ingress Protection | IP67 |
| Safety Features | Pressure Relief Valve, UL94-V0 Flame Retardant Case |
| BMS Features | Solid-State Switches, Heat Dissipation Design, Regen Compatible, Battery-to-Battery Balancing |
Download Datasheet
The Italian Advantage: 11-Year Warranty & Expert Support
Invest with total confidence. Your purchase is protected by our robust 11-year manufacturer's warranty, managed directly and efficiently from our headquarters in Italy. We build batteries designed to last.
As an Italian company specializing solely in advanced lithium battery solutions, we provide unparalleled expertise. Get fast, knowledgeable pre-sales advice and reliable after-sales support from our team near Perugia.
