LITIO STORE

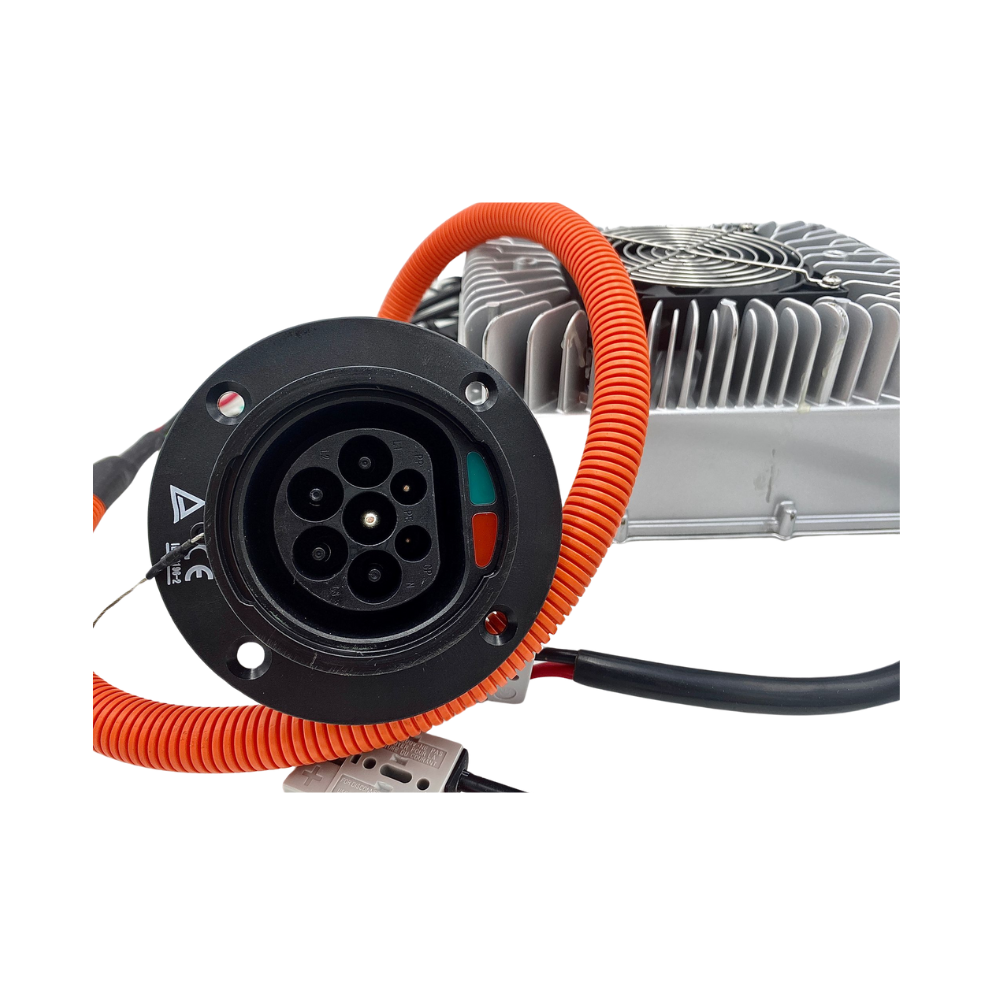

LS4835TW 48V 35A 56.8V 2000W Type 2 Lithium Battery Charger Waterproof IP67 LiFePo4 batteries
LS4835TW 48V 35A 56.8V 2000W Type 2 Lithium Battery Charger Waterproof IP67 LiFePo4 batteries
Couldn't load pickup availability
Waterproof IP67 48V 35A LiFePO4 Charger with Type 2 Input (LS4835TW)
Shipping Information: Approx. 25-45 days after payment confirmation. (Ships from Factory -> Italy Hub -> EU Customer).
Experience even faster charging for your 48V LiFePO4 system with the high-power ITALCHARGER 48V 35A. Leveraging the convenience of Type 2 EV charging stations, this robust IP67 waterproof charger delivers a massive 35A (2000W) output. It features our optimized 56.8V charging voltage, designed to maximize battery lifespan while providing rapid charging for golf carts, boats, RVs, and more.
LS4835TW Key Features:
-
Charge Anywhere (Type 2 Input): Maximum flexibility! Connect directly to standard Type 2 (IEC 62196) public or private EV charging stations.
-
High Power Charging (35A / 2000W): Delivers a very strong 35 Amp current for significantly faster charging of your 48V LiFePO4 batteries.
-
Fully Waterproof & Dustproof (IP67): Engineered for maximum durability in marine, outdoor, and mobile environments.
-
Optimized LiFePO4 Longevity (56.8V Output): Charges to the ideal voltage to help maximize the cycle life of your LiFePO4 batteries vs standard 58.4V chargers.
-
Certified Safe & Reliable: CE, EN, and ROHS certified with comprehensive safety protections for peace of mind.
-
Wide Operating Temperature: Reliable performance in diverse conditions from -30°C to +60°C.
-
Efficient Forced Air Cooling: Maintains optimal operating temperature during high-power charging.
Revolutionise Your Mobile Charging
The LS4835TW 56.8V 35A offers unparalleled flexibility by allowing you to charge your electric golf cart, boat, RV, or other 48V LiFePO4 systems directly from any standard Type 2 EV charging station (IEC 62196). Stop carrying multiple chargers and leverage the growing EV infrastructure wherever you go!
Compatibility
This charger is designed for 48V (Nominal 51.2V) Lithium Iron Phosphate (LiFePO4) battery systems (16S configuration). The Type 2 input negotiates power via the standard CC-CP signal protocol. Please ensure your battery BMS is compatible with a 56.8V charge voltage and up to 35A charge current.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LS4835TW |
| Input Connector | Type 2 (IEC 62196) |
| Input Voltage | 220V AC (Nominal, via EVSE negotiation) |
| Output Voltage (Max) | 56.8 VDC |
| Output Current (Max) | 35 A |
| Output Power | 2000 W |
| Compatible Battery | 48V (51.2V) LiFePO4 (16S LFP) |
| Efficiency | >95% |
| Operating Temperature | -30°C to +60°C |
| Ingress Protection | IP67 (On-board Seal Charger) |
| Cooling System | Forced Air Cooling |
| Communication | CC-CP Signal (Type 2 Standard) |
| Dimensions (L x W x H) | 282 x 168 x 90 mm |
| Weight | Approx. 3.8 kg (8.4 lbs) |
| Output Connector | Anderson |
| Safety Certifications | CE, EN, RoHS |
Invest in Quality: 2-Year Warranty & Expert Support
The ITALCHARGER Type 2 charger is built for high performance and longevity, backed by a strong 2-Year Manufacturer's Warranty against defects, managed directly from Italy.
As an Italian company specializing solely in advanced lithium battery systems since 2015, we provide unparalleled expertise. Get fast, knowledgeable pre-sales advice and reliable after-sales support from our team near Perugia city.
Questions About Type 2 Charging?
We can help you understand compatibility with your vehicle, battery system, or specific EV charging stations.
- info@48v.store
- +39 375 612 5606 (EN/IT/ES | Mon-Fri 9-17 CEST)
