LS4880TW 48V 80A 57.6V 5000W 3-Phase 400V Lithium Battery Charger Waterproof IP67 LiFePo4 batteries
LS4880TW 48V 80A 57.6V 5000W 3-Phase 400V Lithium Battery Charger Waterproof IP67 LiFePo4 batteries
Couldn't load pickup availability

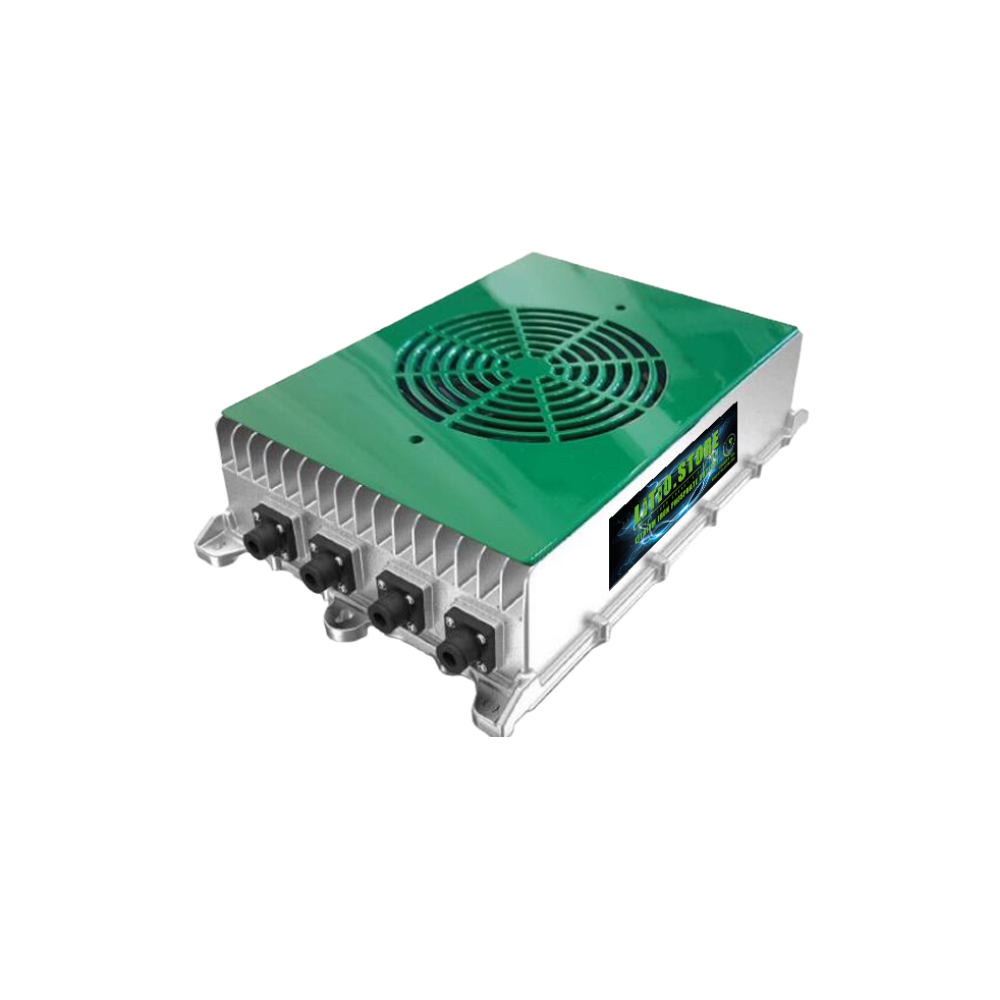

Waterproof IP67 48V 80A LiFePO4 Charger - 3-Phase (LS4880TW)
Shipping Information: Approx. 15-30 days after payment confirmation. (Ships from Factory → Italy Hub → EU Customer).
Achieve the absolute fastest charging speeds for your demanding 48V LiFePO4 system with the powerhouse LITIO STORE LS4880TW. This charger utilizes a 3-Phase 400V AC supply to deliver an incredible 80A (5000W) charging current. Built tough with an IP67 waterproof rating, it's the ultimate solution for rapidly charging large battery banks in industrial vehicles, large marine applications, or any situation where minimum downtime is critical.
LS4880TW Key Features:
-
Extreme Power Charging (80A / 5000W): Maximum charging speed! Delivers a massive 80 Amp current via 3-Phase power for the fastest possible recharge times.
-
3-Phase Input: Connects directly to 400V 3-Phase AC for maximum power throughput. (Requires 3-Phase Supply)
-
Fully Waterproof & Dustproof (IP67): Maximum protection against water and dust ingress for reliable operation in any environment.
-
Standard LiFePO4 Charging (57.6V Output): Charges 16S LiFePO4 batteries effectively to 57.6V, suitable for most BMS settings requiring maximum charge voltage.
-
Certified Safe & Reliable: CE, EN, and ROHS certified with comprehensive safety protections for worry-free high-power charging.
-
Wide Operating Temperature: Reliable performance from -20°C to +65°C.
-
Efficient Cooling: Utilizes forced air cooling for sustained high-power operation.
Extreme Charging Speed via 3-Phase Power
Need the absolute fastest charge? The LS4880TW leverages 3-Phase 400V AC power to achieve an incredible 80A / 5000W output. This significantly cuts down charging time for large battery banks often found in industrial equipment, larger electric boats, or demanding off-grid systems. Note: Requires access to a 3-Phase 400V.
Compatibility & Input Requirements
This charger is designed for 48V (Nominal 51.2V) Lithium Iron Phosphate (LiFePO4) battery systems (16S configuration). Please ensure your battery BMS is compatible with a 57.6V charge voltage and up to 80A charge current.
IMPORTANT: This charger requires a 400V AC 3-Phase power supply. It will NOT operate on standard single-phase 220-240V AC power or single-phase Type 2 connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LS4880TW |
| Input Connector | EU Schuko |
| Input Voltage | 400V AC (3-Phase) |
| Output Voltage (Max) | 57.6 VDC |
| Output Current (Max) | 80 A |
| Output Power | 5000 W |
| Compatible Battery | 48V (51.2V) LiFePO4 (16S LFP) |
| Efficiency | ≥94% |
| Operating Temperature | -40°C to +70°C |
| Ingress Protection | IP67 |
| Cooling System | Forced Air Cooling |
| Communication | Type 2 CC-CP Signal |
| Dimensions (L x W x H) | 419 x 282 x 101 mm |
| Weight | Approx. 18 kg |
| Output Connector | Anderson |
| Protections | Short Circuit, Over Voltage, Over Current, Reverse Polarity, Over Temperature |
| Safety Certifications | CE, RoHS |
Invest in Quality: 2-Year Warranty & Expert Support
This high-power 3-Phase Type 2 charger is built for extreme performance and longevity, backed by a strong 2-Year Manufacturer's Warranty against defects, managed directly from Italy.
As an Italian company specializing solely in advanced lithium battery systems since 2015, we provide unparalleled expertise. Get fast, knowledgeable pre-sales advice and reliable after-sales support from our team near Perugia city.
Questions About This High-Power 3-Phase Charger?
We can help confirm compatibility, discuss 3-Phase requirements, or answer any technical questions.
